VAXstation 4000/60

Pictures

Notes

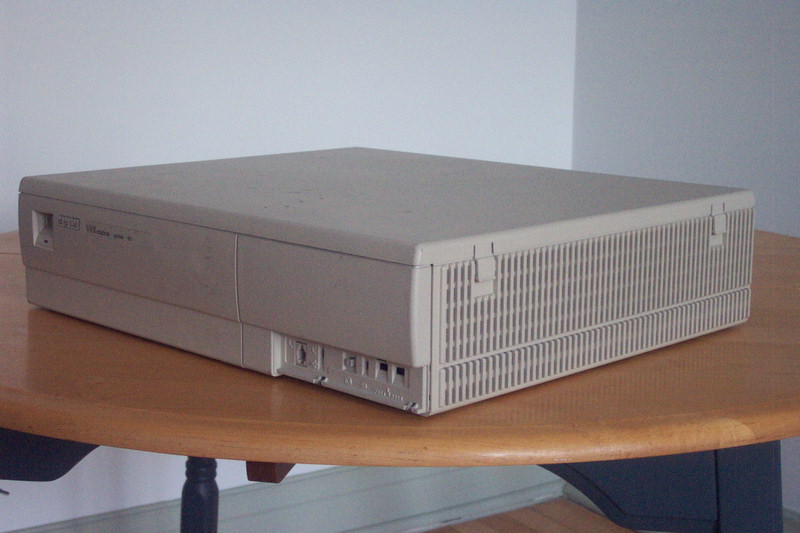

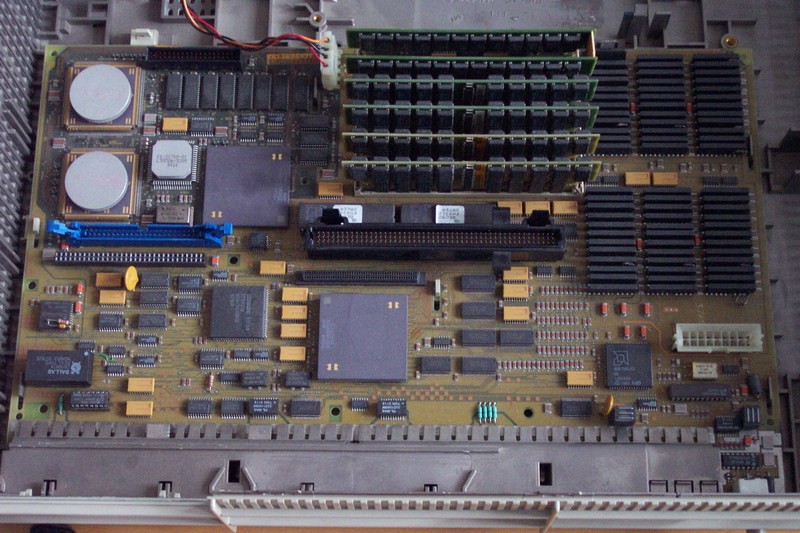

• The frame-buffer card was missing in most of the pictures.

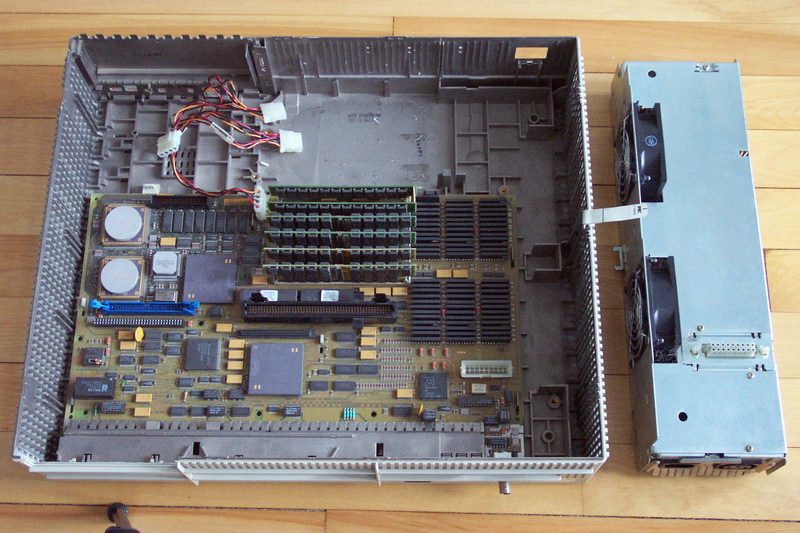

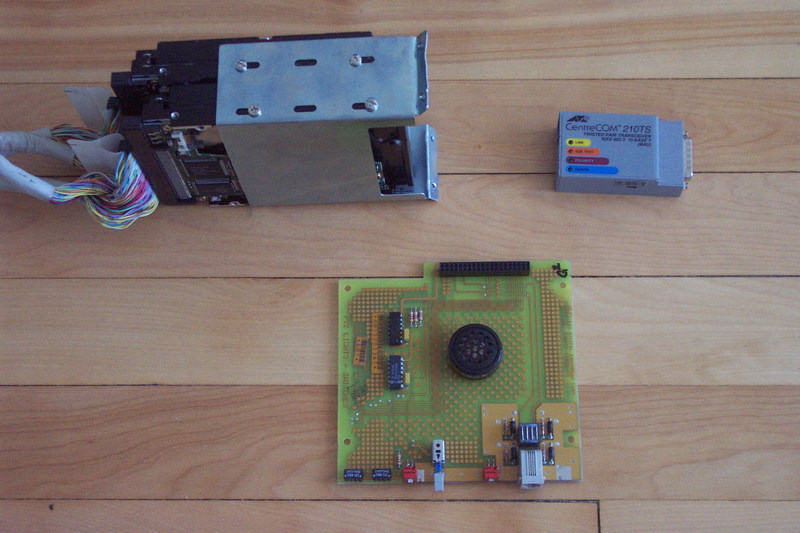

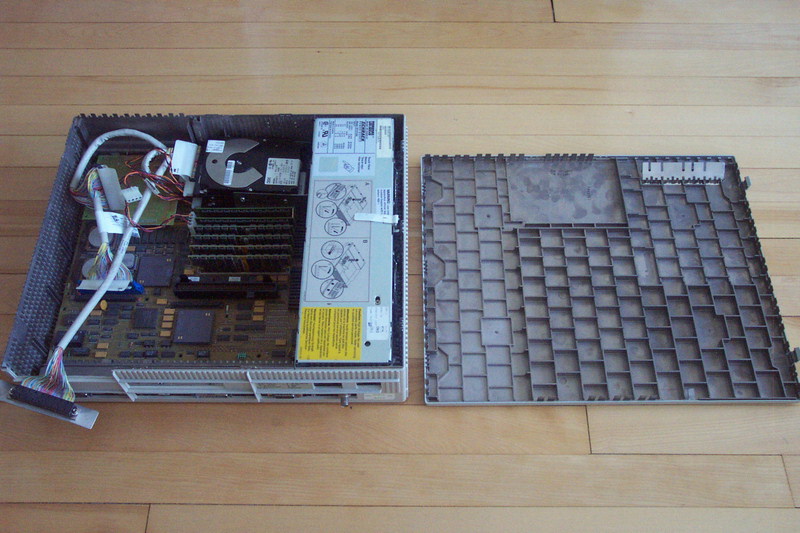

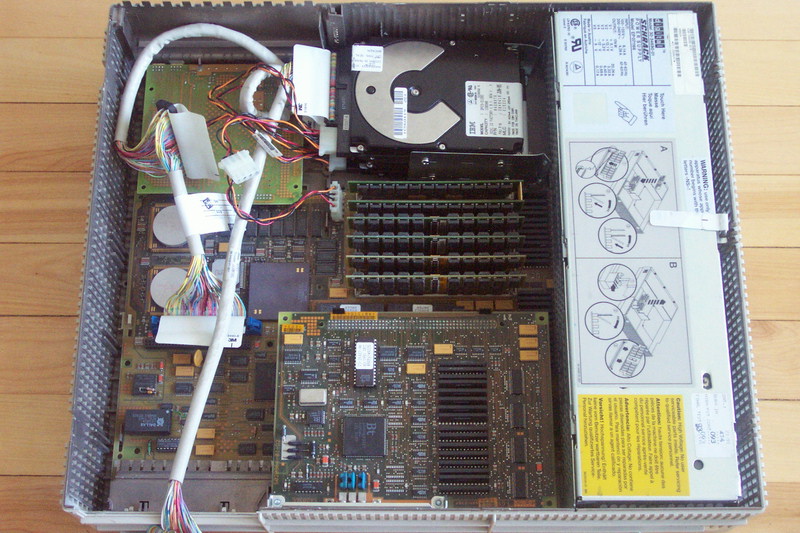

• This VAXstation was missing all of it's hard-drive holders when I got it. I reused a hard-drive bracket from a PC case to hold my 2 drives inside the unit. Normally, a complete case contains drive holder for 2 half-height SCSI-2 hard-drive and 1 full-height SCSI-2 device with possible external access.

Specifications

CPU	KA46 @ 55 MHz
Cache	2 KB on chip, 256 KB on board
VUP	12
Memory	32 MB (8 MB on board + 6 x 4 MB or 32 MB 80 pins parity SIMMS)
Video	8 plane, 2D color/grayscale, 1280x1024 @ 72Hz [unsupported in OpenBSD].
Disk Controller	onboard NCR 53c94 SCSI-2 narrow (8 bits bus) internal 50 pin round cable male connector, 3 positions free external 50 pin centronix female [not a separate bus, last connector of the internal cable]
Case	BA46-B

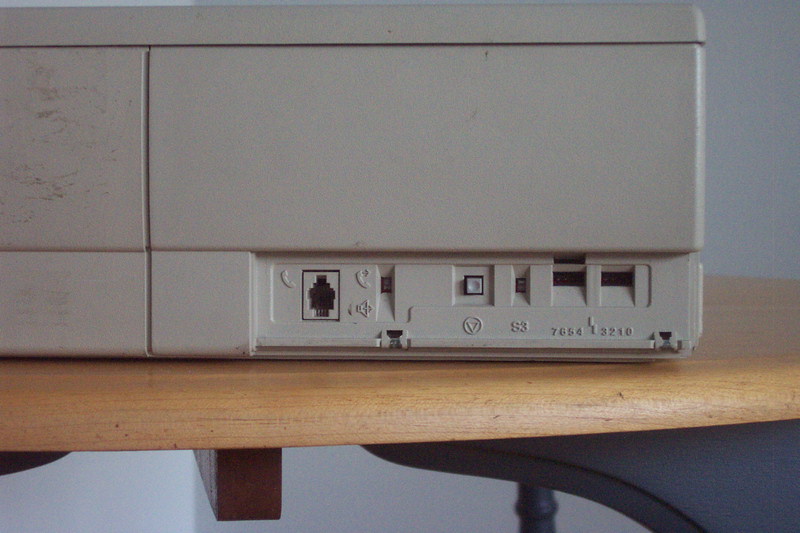

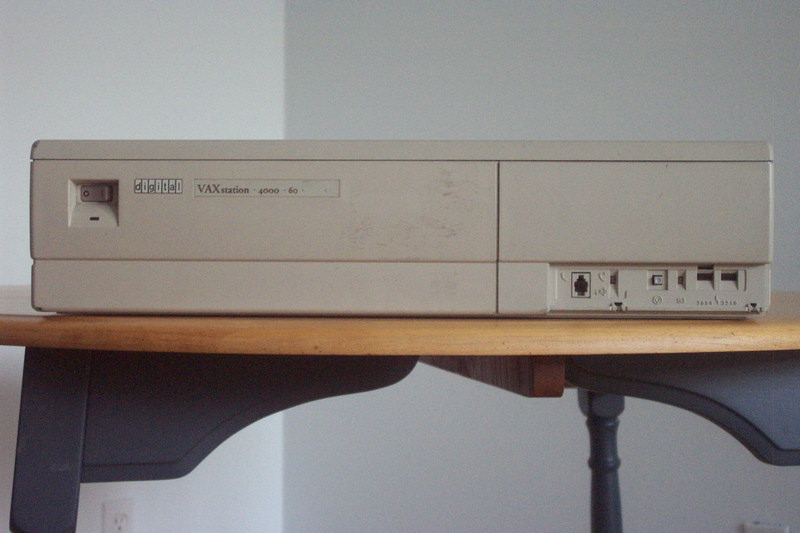

Front Pannel Connectors and Switch	MJ11 [4P4W] ISDN phone connector [Unsupported in OpenBSD] Internal Speaker mode switch   up - ISDN Audio   down - System Speaker break to chevron prompt push button S3: Console Operation mode switch   up - MMJ port console   down - Monitor/Keyboard console Status light [8 bits diagnostic code for pre-console startup sequence]

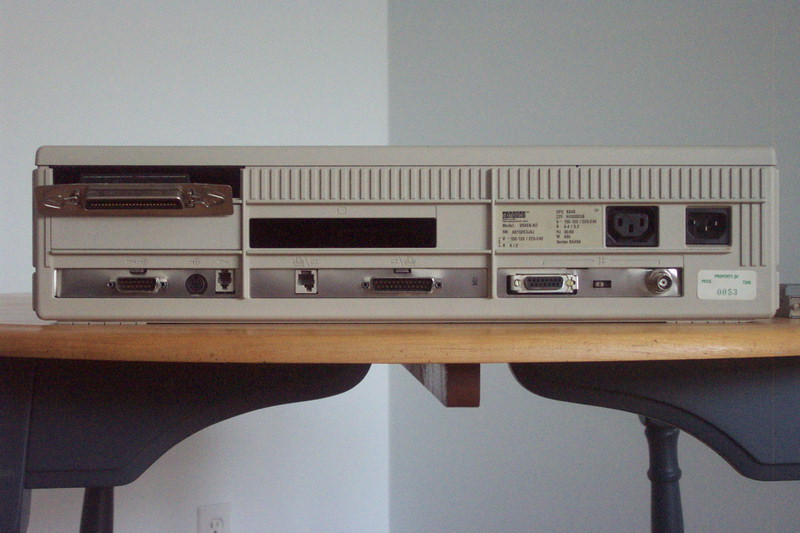

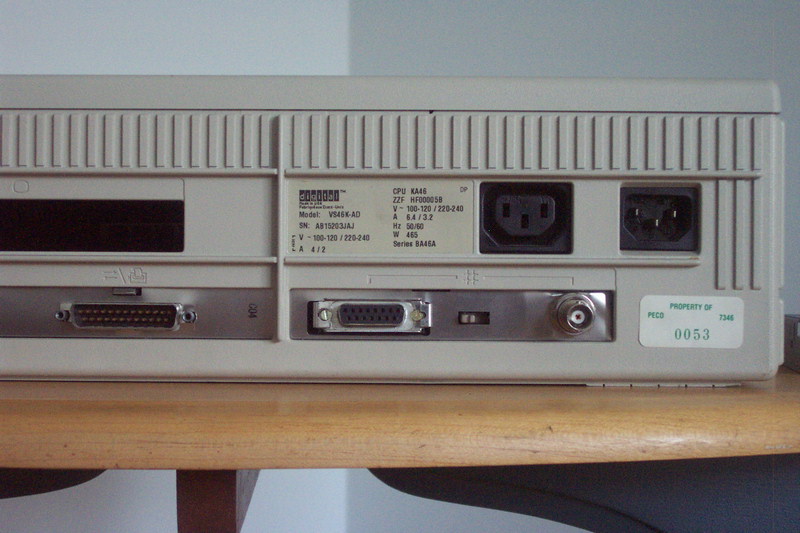

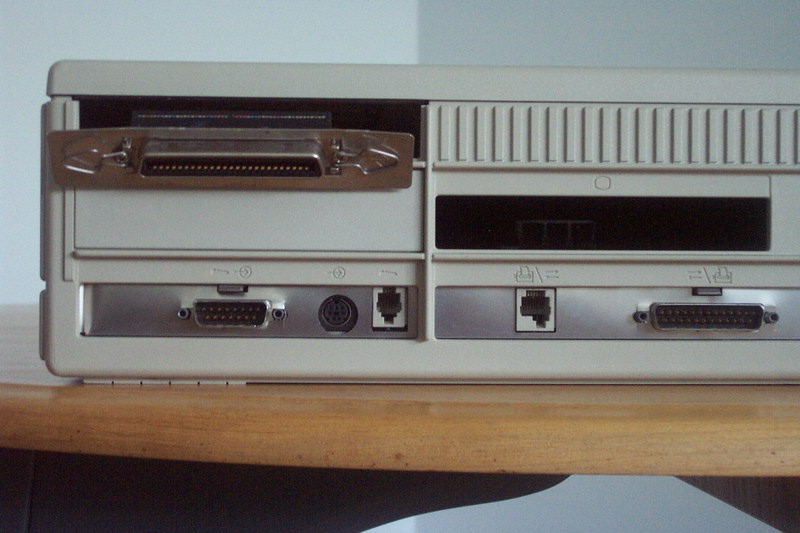

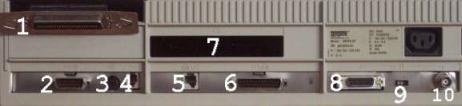

Back Connectors and Switch	SCSI-2 Centronix 50 pin female connector Keyboard/Mouse DB15 male combo connector Mouse 6 pin mini-DIN female connector Keyboard MJ11 [4P4W] connector Serial port/console MMJ [6P6W offset tab] connector Serial port DB25 male connector Video Connector 3 pin female [not shown] Ethernet AUI port - DB15 female Ethernet selection switch [AUI or 10base2] Ethernet 10base2 port

Dmesg

OpenBSD 3.6-stable (GENERIC) #0: Mon Nov 22 14:39:30 EST 2004
    root@vax4.EINTR.net:/usr/src/sys/arch/vax/compile/GENERIC
VAXstation 4000/60 [12000003 04010002]
cpu: KA46
cpu: turning on floating point chip
total memory = 33144832
avail memory = 27131904
using 430 buffers containing 1761280 bytes of memory
mainbus0 (root)
vsbus0 at mainbus0
vsbus0: 32K entry DMA SGMAP at PA 0x5e0000 (VA 0x805e0000)
vsbus0: interrupt mask 0
dz0 at vsbus0 csr 0x200a0000 vec 84 ipl 15 maskbit 4: 4 lines
le0 at vsbus0 csr 0x200e0000 vec 504 ipl 15 maskbit 1 buf 0x0-0xffff
le0: address 08:00:2b:28:f6:82
le0: 32 receive buffers, 8 transmit buffers
asc0 at vsbus0 csr 0x200c0080 vec 508 ipl 15 maskbit 0: NCR53C94, 25MHz, SCSI ID 7
scsibus0 at asc0: 8 targets
sd0 at scsibus0 targ 1 lun 0: <SEAGATE, ST34520N, 1281> SCSI2 0/direct fixed
sd0: 4340MB, 9006 cyl, 4 head, 246 sec, 512 bytes/sec, 8888924 sec total
booted from device: sd0
root on sd0a
rootdev=0x1400 rrootdev=0x3b00 rawdev=0x3b02

Links

• VAXSTATION 4000/60 chevron prompt commands and output [no explanation]
• Relative VUP performance for OpenBSD supported vax hardware
• vt100.net/manx: VAXstation 4000 manuals in MANX database
• vt100.net/manx: Links in MANX database to the VAXstation 4000 Model 60 Owner's and System Installation Guide
• Compact/HP: VAXstation 4000/60 Description and option manual
• Compact/HP: DECconnect Passive Connector chart (Serial adaptor pin-out for DEC MMJ modular adaptors)
• NetBSD: DEC - VAX hardware reference
