SPARCstation 5 / 70 MHz

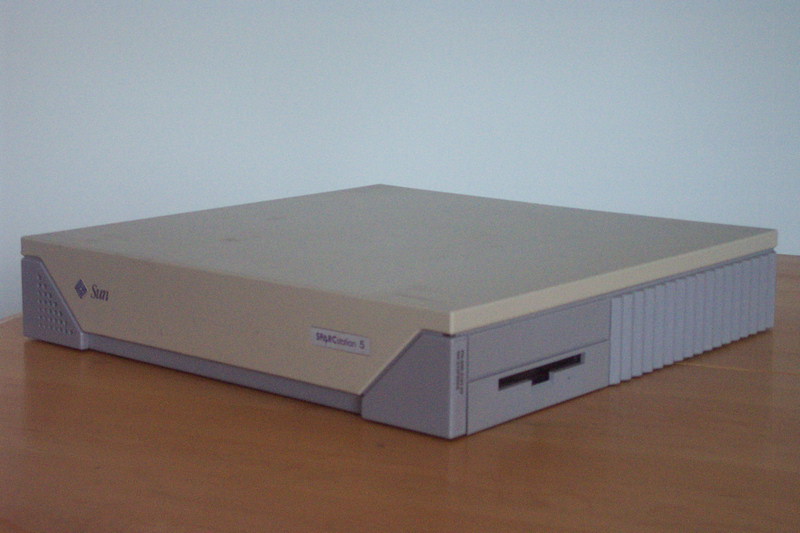

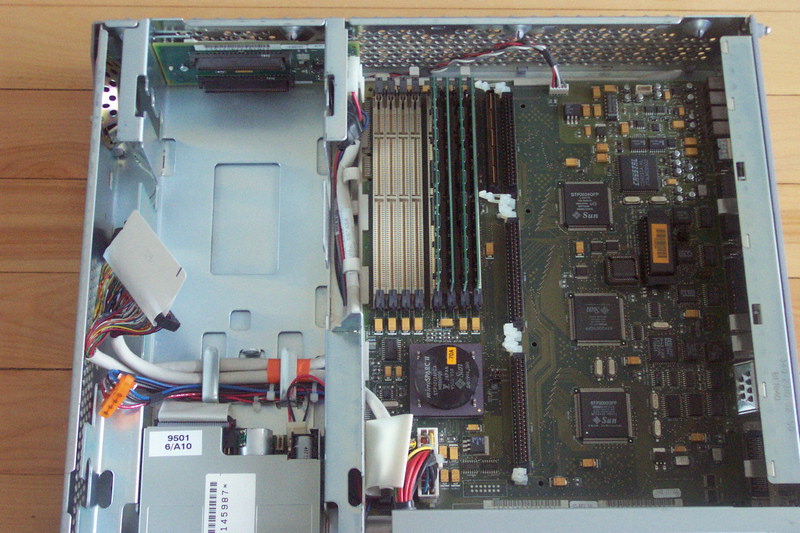

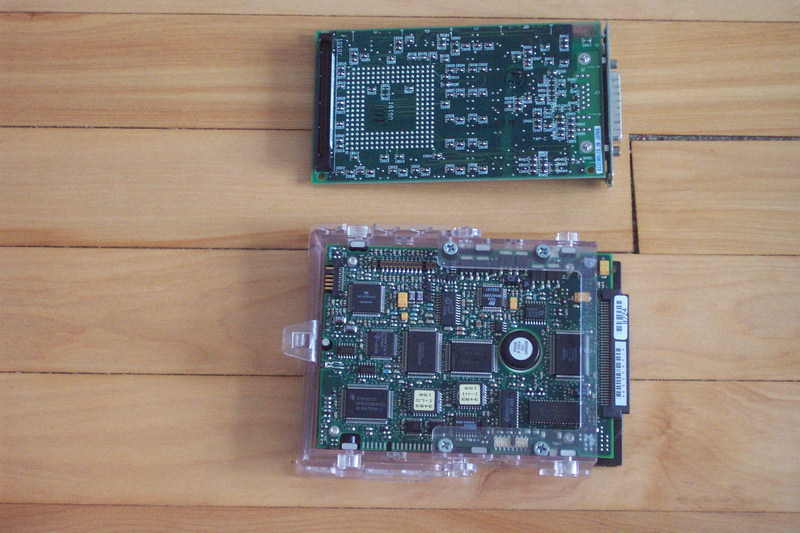

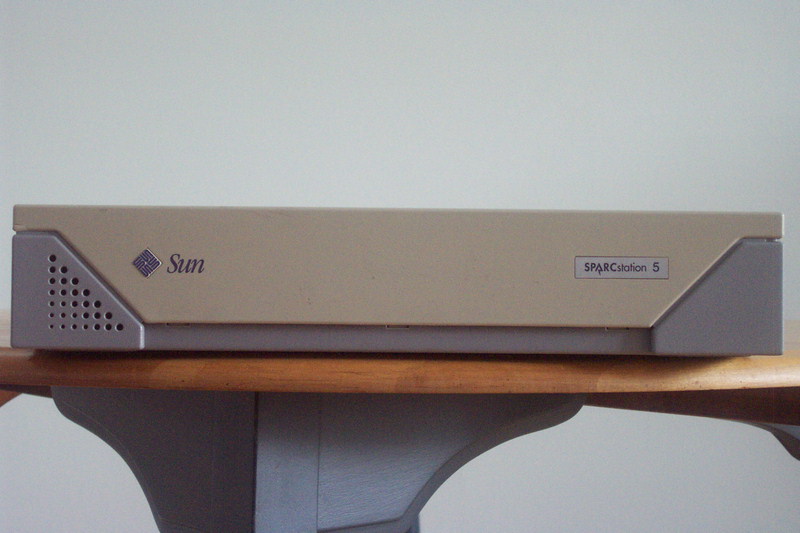

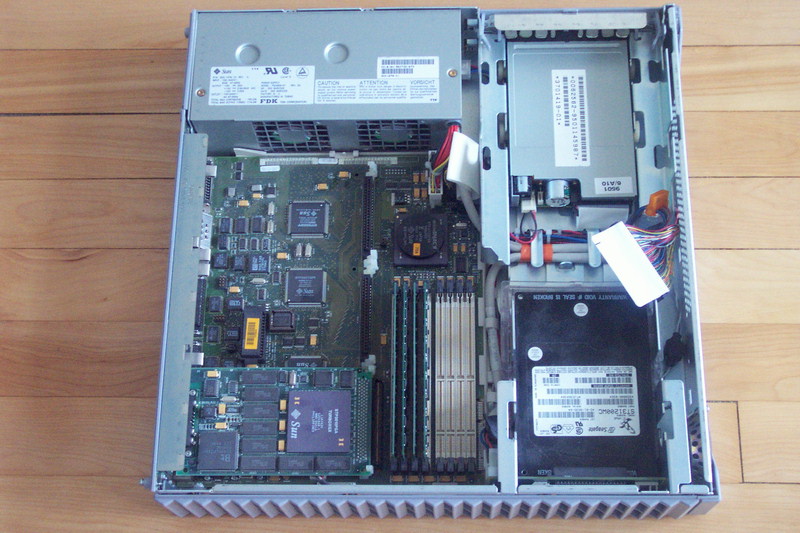

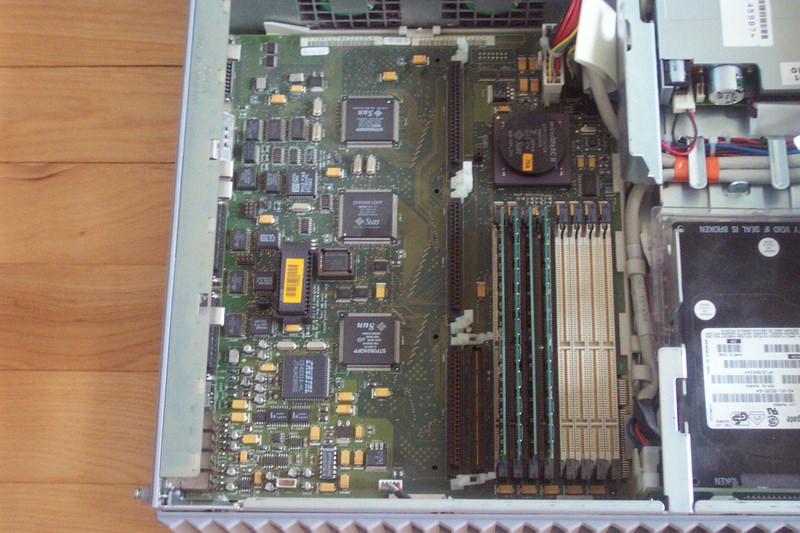

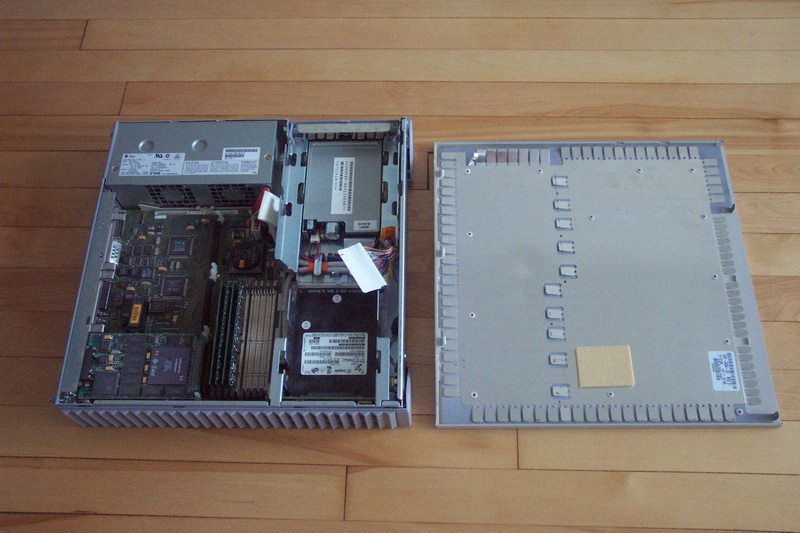

Pictures

Notes

Since the pictures where taken, I have done these modification to the system. The specs and dmesg reflect this.
- Replaced the original sun installed 1G hard-drive by an 4G IBM one. Due to heat problems, I cannot put both at the same time in the system.
- Added a Thoshiba SCSI-2 CD-ROM.
- Added 2 x 32MB of memory.
Also, the floppy drive is there for esthetic purpose, it fails to read entire floppies.

Specifications

CPU	70 MHz microSPARC II (sun4m)
Memory	96 MB (max 256 MB - 8 x 8 or 32 MB parity DSIMMs)
Bus	SBUS at 23.3 MHz - 3 slot

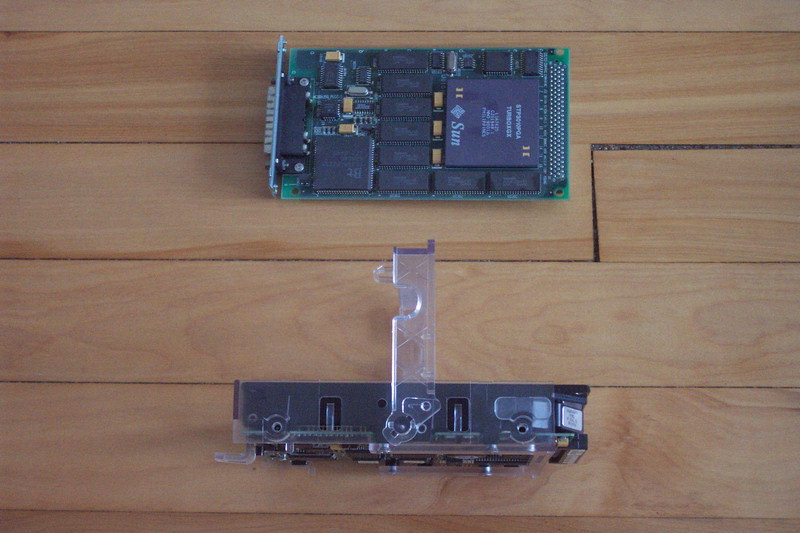

Video	SBUS CG6 - 8 bit color accelarated framebuffer
Sound	onboard CS4231 audio at CD quality with internal speaker - 16 bit stereo at 44100 Hz
Disk Controller	onboard NCR 53c94 SCSI-2 narrow internal 50 pin narrow flat cable male connector for CD-ROM internal SCA-2 (80 pin) backplane for 2 hard-drive external 50 pin HD narrow female connector
Case	Sun Aurora Chassis 1 x 3.5 inch floppy drive 1 x non-standard height SCSI-2 50 pin narrow male connector CD-ROM [not in the pictures] 2 x half-height SCSI-2 SCA 80 pin female connector hard-drive

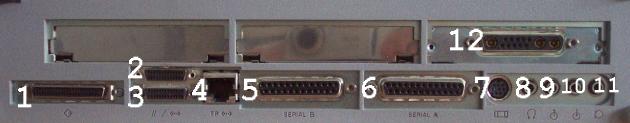

External Connectors	SCSI-2 narrow - HD 50 pin female connector Printer Port - HD 26 pin female connector [non-standard] Ethernet AUI Sun connector - HD 26 pin female connector Ethernet 10baseT RJ connector Serial port B - DB25 female connector [wired as standard DTE] Serial port A - DB25 female connector [wired as standard DTE] Sun keyboard/mouse 8 pin mini-DIN connector Headset - 1/8 inch stereo Audio out - 1/8 inch stereo Audio in - 1/8 inch stereo Microphone - 1/8 inch stereo Female 13W3 Sun video connector [SBUS card]

Dmesg

OpenBSD 3.1-stable (GENERIC) #0: Mon Oct  7 12:30:58 EDT 2002
    root@ss5:/usr/src/sys/arch/sparc/compile/GENERIC
real mem = 167452672
avail mem = 152035328
using 200 buffers containing 8372224 bytes of memory
bootpath: /iommu@0,10000000/sbus@0,10001000/espdma@5,8400000/esp@5,8800000/sd@3,0
mainbus0 (root): SUNW,SPARCstation-5
cpu0 at mainbus0: MB86904 @ 70 MHz, on-chip FPU
cpu0: 16K instruction (32 b/l), 8K data (16 b/l) cache enabled
obio0 at mainbus0
clock0 at obio0 addr 0x71200000: mk48t08 (eeprom)
timer0 at obio0 addr 0x71d00000 delay constant 33
zs0 at obio0 addr 0x71100000 pri 12, softpri 6
zs0a: console i/o
zs1 at obio0 addr 0x71000000 pri 12, softpri 6
slavioconfig at obio0 addr 0x71800000 not configured
auxreg0 at obio0 addr 0x71900000
power0 at obio0 addr 0x71910000
fdc0 at obio0 addr 0x71400000 pri 11, softpri 4: chip 82077
fd0 at fdc0 drive 0: 1.44MB 80 cyl, 2 head, 18 sec
iommu0 at mainbus0 addr 0x10000000: version 0x4/0x0, page-size 4096, range 64MB
sbus0 at iommu0: clock = 23.333 MHz
dma0 at sbus0 slot 5 offset 0x8400000: rev 2
esp0 at dma0 offset 0x8800000 pri 4: ESP200, 40MHz, SCSI ID 7
scsibus0 at esp0: 8 targets
sd0 at scsibus0 targ 3 lun 0: <SEAGATE, ST32430W SUN2.1G, 0508> SCSI2 0/direct fixed
sd0: 2049MB, 3992 cyl, 9 head, 116 sec, 512 bytes/sec, 4197405 sec total
sd1 at scsibus0 targ 4 lun 0: <SEAGATE, ST34520N, 1281> SCSI2 0/direct fixed
sd1: 4340MB, 9006 cyl, 4 head, 246 sec, 512 bytes/sec, 8888924 sec total
cd0 at scsibus0 targ 6 lun 0: <TOSHIBA, XM-4101TASUNSLCD, 1084> SCSI2 5/cdrom removable
bpp0 at sbus0 slot 5 offset 0xc800000: DMA2
ledma0 at sbus0 slot 5 offset 0x8400010: rev 2
le0 at ledma0 offset 0x8c00000 pri 6: address 08:00:20:73:7e:d4
le0: 16 receive buffers, 4 transmit buffers
audiocs0 at sbus0 slot 4 offset 0xc000000 pri 9, softpri 4
audio0 at audiocs0
power-management at sbus0 slot 4 offset 0xa000000 not configured
cgsix0 at sbus0 slot 3 offset 0x0: SUNW,501-2325, 1152 x 900, rev 11
root on sd0a
rootdev=0x700 rrootdev=0x1100 rawdev=0x1102
