HP 712/100 PA-RISC Workstation

Pictures

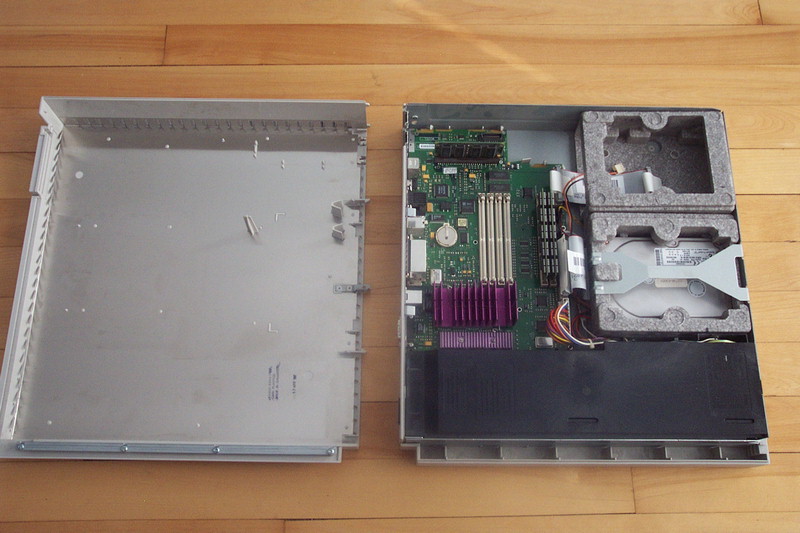

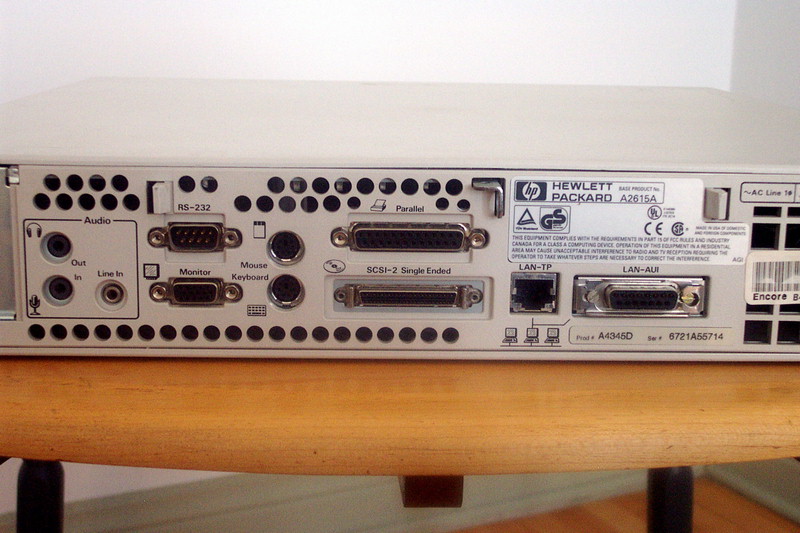

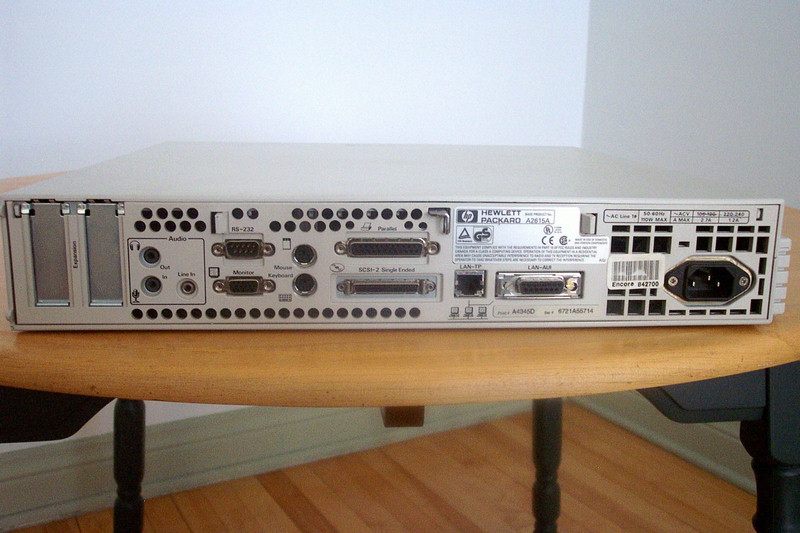

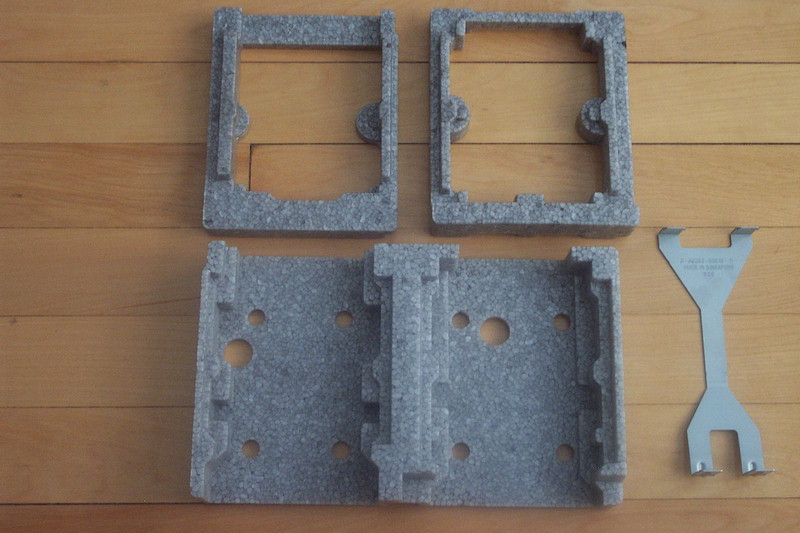

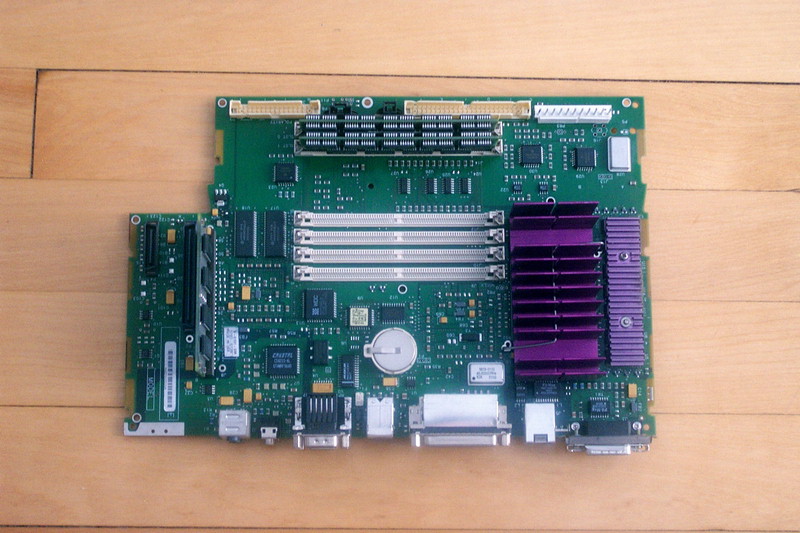

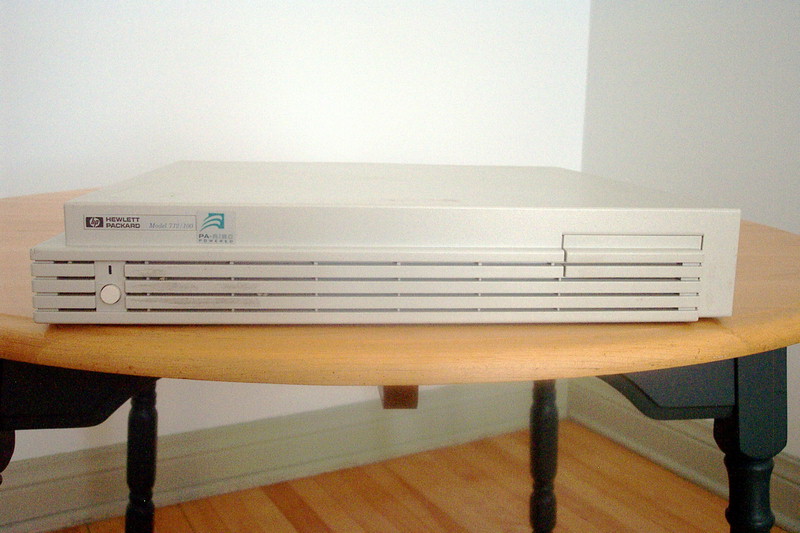

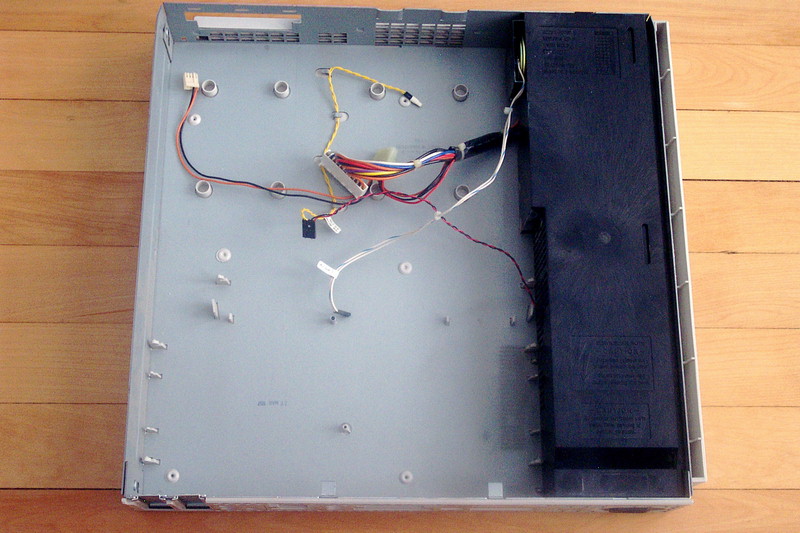

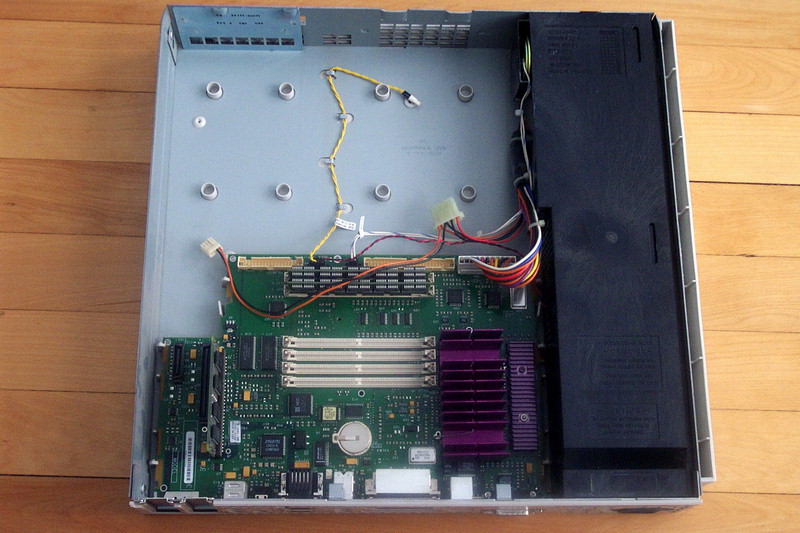

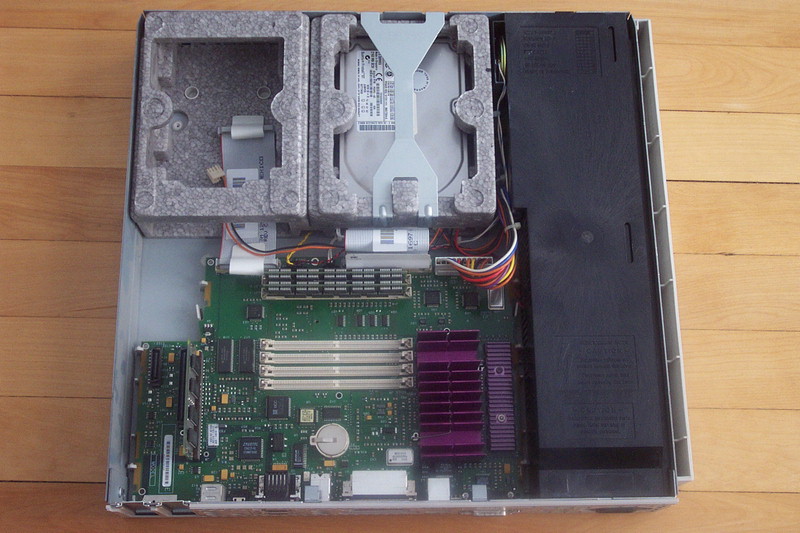

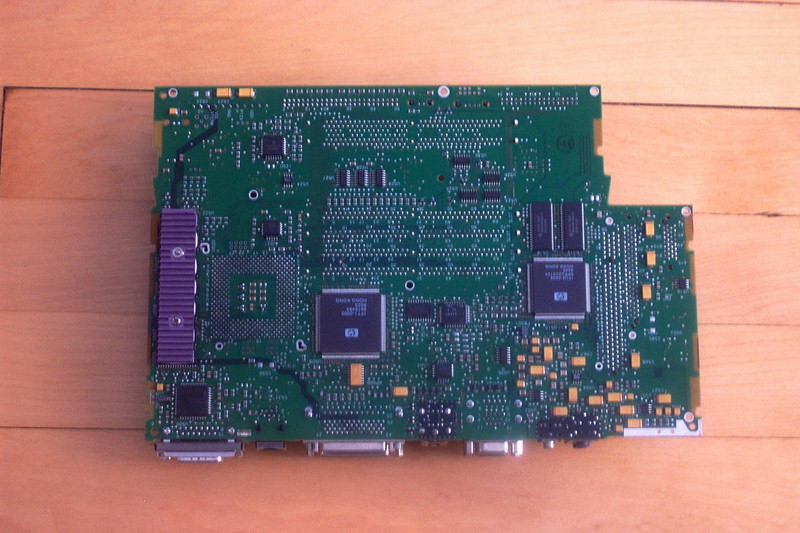

HP 712/100 - Front HP 712/100 - Back HP 712/100 - Back connector section HP 712/100 - Opened, top and bottom part HP 712/100 - Opened, bottom part HP 712/100 - Opened, bottom part, foam assembly removed HP 712/100 - Opened, bottom part, logic board removed HP 712/100 - Foam assemblies HP 712/100 - Logic board top HP 712/100 - Logic board bottom

Dmesg

[ using 332592 bytes of bsd ELF symbol table ]
Copyright (c) 1982, 1986, 1989, 1991, 1993
	The Regents of the University of California.  All rights reserved.
Copyright (c) 1995-2008 OpenBSD. All rights reserved.  http://www.OpenBSD.org

OpenBSD 4.3 (GENERIC) #720: Wed Mar 12 11:12:03 MDT 2008
    deraadt@hppa.openbsd.org:/usr/src/sys/arch/hppa/compile/GENERIC
HP 9000/712/100 (King Gecko) PA-RISC 1.1c
real mem = 67108864 (524288 reserved for PROM, 5926912 used by OpenBSD)
avail mem = 59318272
mainbus0 at root [flex fff80000]
pdc0 at mainbus0
power0 at mainbus0: DR25
mem0 at mainbus0 offset ffbf000: viper rev 0, size 64MB
cpu0 at mainbus0 offset ffbe000 irq 31: PCXL L1-A 100MHz, FPU PCXL (CMOS-26B) rev 1
cpu0: 128K(32b/l) Icache, 128K(32b/l) wr-back Dcache, 64 coherent TLB, 8 BTLB
lasi0 at mainbus0 offset 100000 irq 28: rev 3.0
gsc0 at lasi0
gsckbc0 at gsc0 offset 8100 irq 26
gsckbc1 at gsc0 offset 8000 irq 26
gsckbd0 at gsckbc1
wskbd0 at gsckbd0: console keyboard
"floppy controller" at gsc0 (type a sv 83 mod 1 hv d0) offset a000 not configured
harmony0 at gsc0 offset 4000 irq 13: rev 18
audio0 at harmony0
lpt0 at gsc0 offset 2000 irq 7
com0 at gsc0 offset 5000 irq 5: ns16550a, 16 byte fifo
ie0 at gsc0 offset 7000 irq 8: LASI/i82596CA v1.0, address 00:60:b0:20:82:1e
osiop0 at gsc0 offset 6000 irq 9: NCR53C710 rev 2, 40MHz, SCSI ID 7
scsibus0 at osiop0: 8 targets
osiop0: target 0 now using 8 bit 10 MHz 8 REQ/ACK offset xfers
sd0 at scsibus0 targ 0 lun 0: <QUANTUM, FIREBALL ST2.1S, 0F0J> SCSI2 0/direct fixed
sd0: 2068MB, 7068 cyl, 3 head, 199 sec, 512 bytes/sec, 4235629 sec total
sti0 at mainbus0 offset 8000000 irq 11: HPA208LC640 rev 8.04;7, ID 0x2B4DED6D40A00499
sti0: 2048x1024 frame buffer, 640x480x8 display, offset 0x0
sti0: 8x16 font type 1, 16 bpc, charset 0-255
biomask 0x7 netmask 0xf ttymask 0x3f
bootpath: 2/0/1.0 class=1 flags=c0<autoboot,autosearch> hpa=0xf0106000 spa=0x0 io=0xc114
wsdisplay0 at sti0 mux 1: console (std, vt100 emulation), using wskbd0
softraid0 at root
root on sd0a swap on sd0b dump on sd0b
